FoV — Field of View Selector

Draw the Field of View

1. In the Map View, move and zoom the map so you can see where you want to draw the selector.

   To move the map:

   1. Select the Hand Tool in the top toolbar.
      Quick Key: Or you can hold the "Shift" button on your keyboard.
   2. In the center of the Map View, you will see the crosshair reticle.
   3. In the Map View, click-and-drag the map so the chosen location is at the reticle.

   To zoom-in/out, there are 2 options:

   Option 1
   In the top-right corner of the Map View, click the:

   • Zoom-in button, "+".
   • Zoom-out button, "-".

   Option 2
   Use the scroll wheel on your mouse.

   For Windows

   • Scroll forwards to zoom-in.
   • Scroll backwards to zoom-out.



   For Mac

   • Scroll backwards to zoom-in.
   • Scroll forwards to zoom-out.

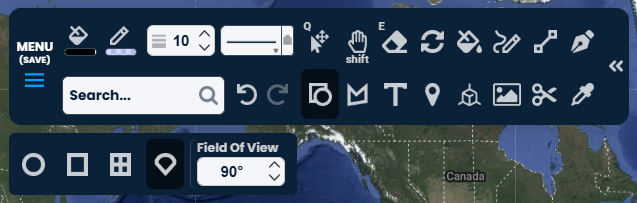

2. Select the Shape Tool in the top toolbar, followed by the FoV Selector.



3. (Optional) Choose the colour of the FoV's fill area.

   To choose the colour:

   1. In the top toolbar, select the Fill Colour Picker.
      The Fill Colour Picker is the Bucket Icon displaying the tooltip: "Change fills. Fill connected lines".

   2. There are 2 options for this step:
      Option 1
      Type the Hex Colour Code into the field.

      Option 2
      1. Click on the "White+Colour" field to choose how much white is mixed with a colour.
      2. (Optional) Click on the Shade Bar to choose how much gray or black is mixed with the "White+Colour".

   3. (Optional) In the "Opacity" field, type-in the non-transparency percentage of the final colour.
      The opacity value:
      • 0% is invisible.
      • 50% is see-through.
      • 100% is the solid colour.

   Note: You can save colours to use later. To learn how, visit this link: Save a colour swatch, then apply it to a new line, shape, or label


4. (Optional) Choose the colour of the FoV's border.
   The Border Colour Picker is the Pencil Icon displaying the tooltip: "Changes line/border colour".

5. (Optional) Choose the border thickness.

   To the right of the Border Colour Picker:

   • Click on the up/down arrows.
     OR
   • Type the number into the field.




6. (Optional) Choose the border style

   To the right of the border thickness selector:

   1. Click on the current border style.
   2. On the drop-down list, click to select the new border style.




7. In the Map View, draw the FoV by clicking and dragging from the viewing angle (apex) outward to the arc.
   This step will help you visualize the area covered by the field of view, defined by the viewing angle and its boundary arc.

(Optional) View the shape's row in the Layers Panel

Note: To view the Layers Panel, you must be logged-in to a Pro account. To learn how to upgrade, visit this link: How to upgrade to a Pro account

1. Select the Edit/Measure Tool in the top toolbar.

   Quick Key: Or you can press the "Q" button on your keyboard.


2. (Optional) If the "LAYERS" Panel isn't open on the right side of the browser window, click the vertical bar.

3. In the Map View, hover over the shape.
   In the Layers Panel, you will see the shape's row is highlighted.
